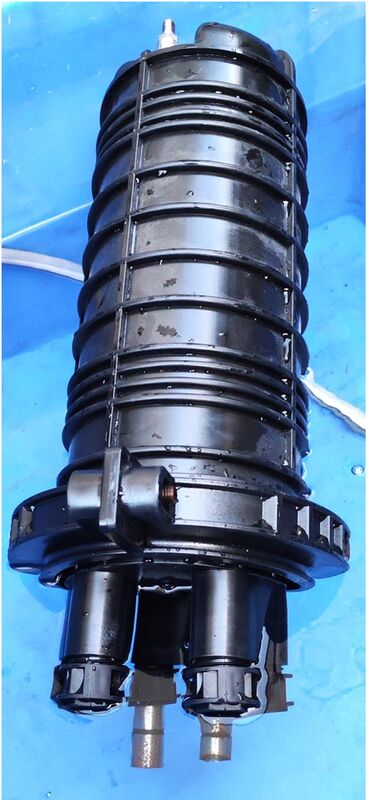

High Quality Impact Material Fiber Optic Joint Closure Used In Duct , Buried , Overhead
Advantage:
1.1 The closure can be used in duct, buried, overhead..etc
1.2 High quality impact material.pp and internal is ABS
1.3 Designed for ftth with adapter if need.
1.4 Fiber storage with brasket bracket or back-bracket choice
1.5 Modular fiber management system
1.6 Cable diameter range: 12~16
1.7 Sealing of cables: mechanical seal .
1.8 Quality warranty:2 years
1.9 Life span:more than 15 years
1.10 IP rating is IP68
GJS20-DM09A FOSC follow with the standard communications industry of The People's Republic of China: YD/T814-2004
①. Environment ⚫Temperature: -30℃- +60℃ Atmospheric Pressure:70-106Kpa
②. Life Span:More than 15 years.
③. Material:Higt strength polypropylene(PP)
Applications:
Aerial,Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..etc
Specifications:
| Item |
Ports |
Max trays |
Max core |
Holder |
D*H(mm) |
Weight |
Value/ground |
| GJS20-DM09A |
5 |
4 |
12~96 |
6/12 |
Ø120 * 380 |
2.1 |
OPTION AL |
Competitive Advantage:
Easy & fast installation with no special tools
Superior sealing performance(free sample for testing)
The closure can be repeatly used many times.
The cables can be fixed from 3 points,safe and reliable
Enough space for surplus fibers inside the closure
Flexible branching for fibers
loose leaf type of splice tray fixing,easy operation&maintain
Modular fiber management system
